| Connection | |
|---|---|
| minimum diameter annular cutters (millimeter) | 12 |
| maximum diameter annular cutters (millimeter) | 32 |
| minimum diameter countersinking (millimeter) | 10 |
| maximum diameter countersinking (millimeter) | 40 |
| minimum diameter twist drills (millimeter) | 1 |
| maximum diameter twist drills (millimeter) | 13 |
| connection 1 model | inside |
| connection 1 size (millimeter) | 19.05 |
| connection 1 type | Weldon |
| Dimensions | |
| stroke (millimeter) | 150 |
| magnet length (millimeter) | 160 |
| magnet width (millimeter) | 80 |
| magnet height (millimeter) | 42 |
| minimum height (millimeter) | 370 |
| maximum height (millimeter) | 512 |
| length (millimeter) | 320 |
| width (millimeter) | 210 |
| height (millimeter) | 512 |
| Properties | |
| rotation direction | clockwise |
| type of gear box lubrication | grease |
| magnetic force (kilogram) | 1500 |
| electric rotation speed adjustment | no |
| nett weight (kilogram) | 11 |
| system of measurement | mm (metric) |
| application | drilling, countersinking |
| Performance | |
| no-load rotation speed gear 1 (rotations per minute) | 775 |
| load rotation speed gear 1 (rotations per minute) | 400 |
| Supply | |
| motor power (Watt) | 1000 |
| total power (Watt) | 1050 |
| power supply frequency (Hertz) | 50 – 60 |
| power supply current | AC |
| power supply connection | plug according CEE 7/7 |
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 220 – 240 |

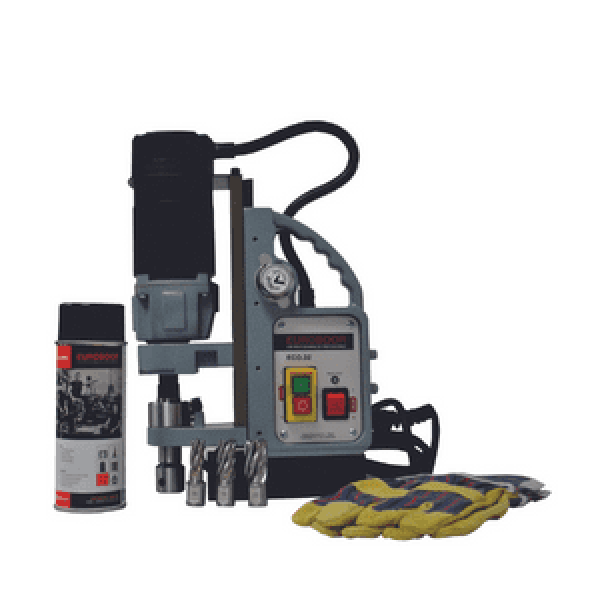

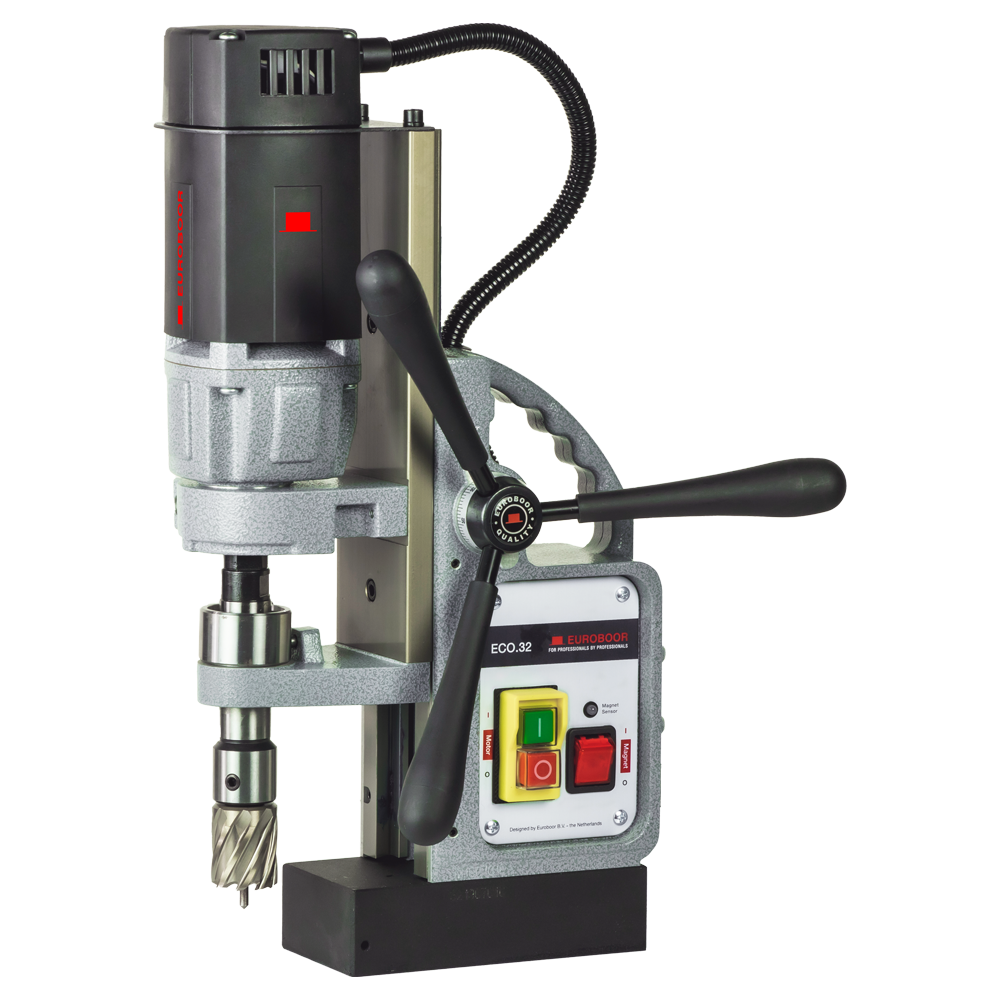

EUROBOOR ECO 32 Magnetic Base and Drill 32mm 1000w
R13,662.00
1 in stock
The compact Euroboor ECO.32 magnetic core drilling machine has a powerful single speed 1,000 W motor. This portable magnetic core drilling machine is suitable for the use with Weldon twist drills up to 13 mm and countersinks up to 40 mm. This light and reliable machine is a true addition for every workplace.
| Weight | 32 kg |
|---|---|
| Dimensions | 21 × 52 × 11 cm |
